Our Product

Slotted Channel

Application
When it comes to Slotted Channels in India, Divakaran Engineering is your go-to resource for production, distribution, and export.

Construction

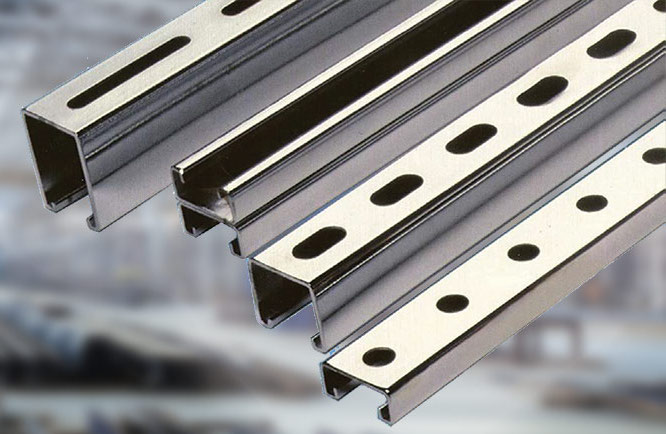

Slotted steel mounting rails like this are commonly used to fabricate metal structures and fittings. The flexible slotted channel and fasteners are connected together to make a system for supporting several building services.

Features

An inspired approach to quality projects

  • Its rigid metal sheet construction makes it an excellent choice for the slotted channel.
  • Particularly useful for connecting the lightweight structure loads at various construction sites.
  • Mild steel, pre-galvanized, and hot-dip galvanised are all examples of corrosion-resistant coating options.
  • The system's adaptability and reusability are enabled by the Support structures' minimalistic design and low-effort installation.
  • Design - Serrated & Non serrated
  • Size
    1. 41 x 41 mm | 1-5/8” x 1-5/8 “ inch
    2. 41 x 61 mm | 1- 5/8" x 2-7/16 " inch
    3. 41 x 21 mm | 1-5/8” x 13/16” inch
    4. 82 x 41 mm | 2 7/16" x 1 5/8" inch
  • Material
    1. Mild Steel SH41 Grade
    2. Pre - Galvanised Finish Steel (120 GSM)
    3. Hot Dip Galvanised Processed Steel
  • Gauge - 1.6 to 2.5 mm | 10 -16 gauge
  • Slot type - Solid and Slotted
  • Hole size
    1. 14 x 28 mm | 9/16” X 1-1/8”
    2. 50 mm / 2” inch
  • Length
    1. 1 meter to 12 meter | 5 ft. to 39 ft.
    2. Can do customised lengths
  • For typical slotted channels, we provide a wide selection of high-tech options.
  • The slotted channel's key benefit is that it does away with the need for welding and drilling.
  • With some nuts and bolts, you've got yourself a highly adaptable, lightweight building support system.
  • Mounting, supporting, and bracing rooftop support systems are common applications.
  • It lessens the likelihood of damage in electrical and plumbing installations.
  • It finds application in plumbing and racing systems.
  • Its main use is as a supporting structure for racks, shelves, ceiling grids, and doorways.
  • Slotted Channel is a common construction material for HVAC systems.
